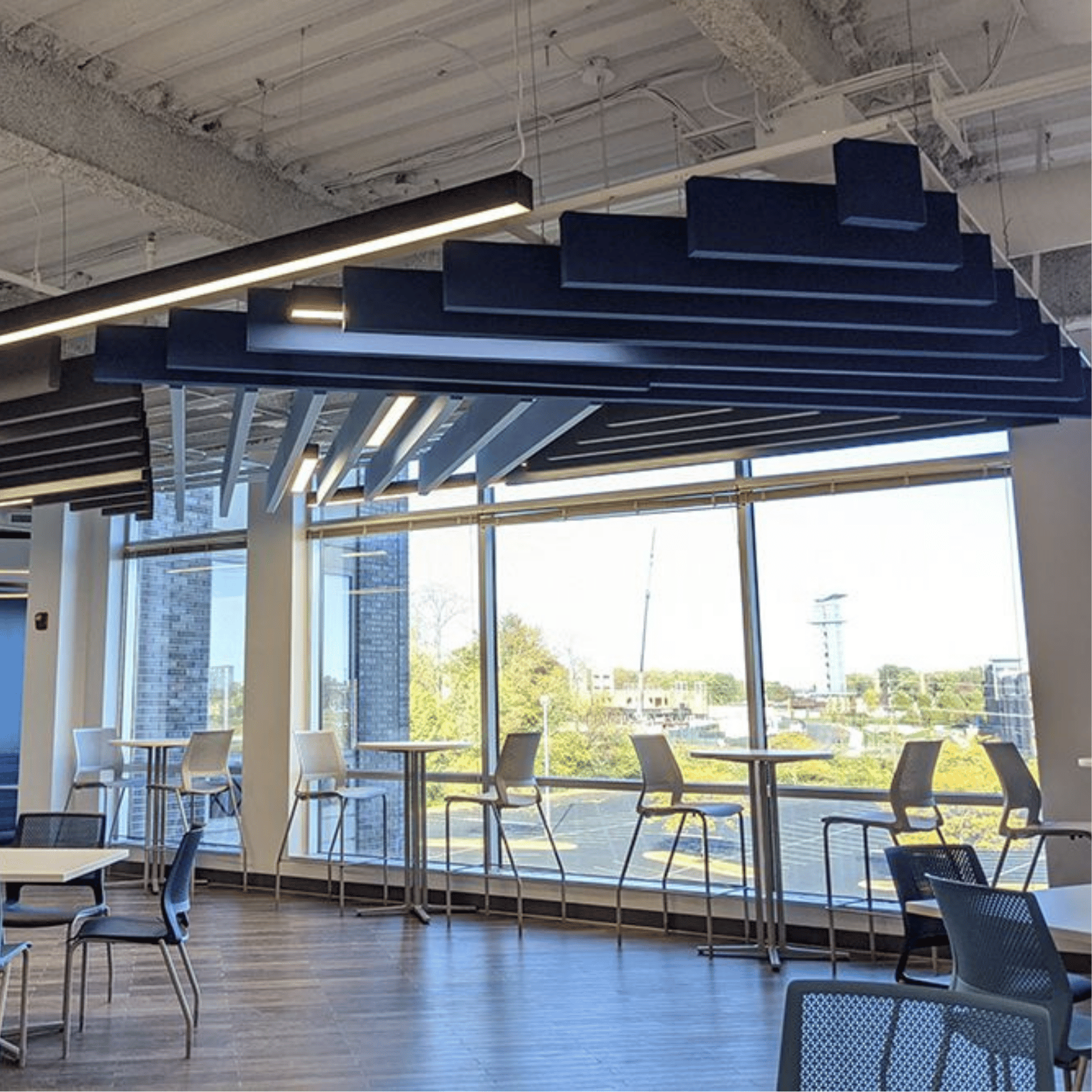

HARDSIDE BAFFLES

Highly efficient sound absorbers, these vertically suspended baffles reduce room reverberation and noise levels. Choose from a variety of fabric or vinyl facings.

Product Details

Kinetics Noise Control Inc. Products

Product Description

Acoustical Ceiling Baffles

Large spaces, including gymnasiums, multi-purpose rooms, restaurants, and atriums, are often too reverberant and noisy. HardSide Baffles are extremely efficient sound absorbers and provide an excellent solution in these areas. Baffles are easily suspended from overhead structures or stretched cable systems, providing sound absorption where there is insufficient wall space for panels or where additional acoustical absorption is required.

HardSide Baffles have crisp edges and a clean appearance. They are constructed with two (2) boards of 6 PCF fiberglass with reinforced edges. All faces and edges are wrapped in fabric from the FR-701© collection from Guilford of Maine or factory-approved, customer-selected fabric. Vinyl finishes are also available.

Specifications

In either new construction or retrofit installations, the HardSide Baffle is ideal for those spaces where superior sound absorption is required at the ceiling.

  • Standard sizes up to 4′ x 10′
  • Standard thicknesses of 2″ and 4″
  • Edge treatments: Square, Bevel, Radius, Pencil, and Miter
  • NRC: 1.00 to 1.05

See data sheet, page 2, for more information

Application

  • Rooms requiring sound absorption at the ceiling level where aesthetics is a priority.
  • Lobbies
  • Reception Areas
  • Corridors
  • Office Areas
  • Gymnasiums
  • Restaurants
  • Multi-Purpose Rooms
  • Churches
  • School Technical Centers
  • Learning Facilities
  • Libraries

Features & Benefits

Installation Guidelines

Available Downloads Options

Datasheet
PDF
Installation Guide
Technical Manual
CAD
Drawings
Test
Reports
