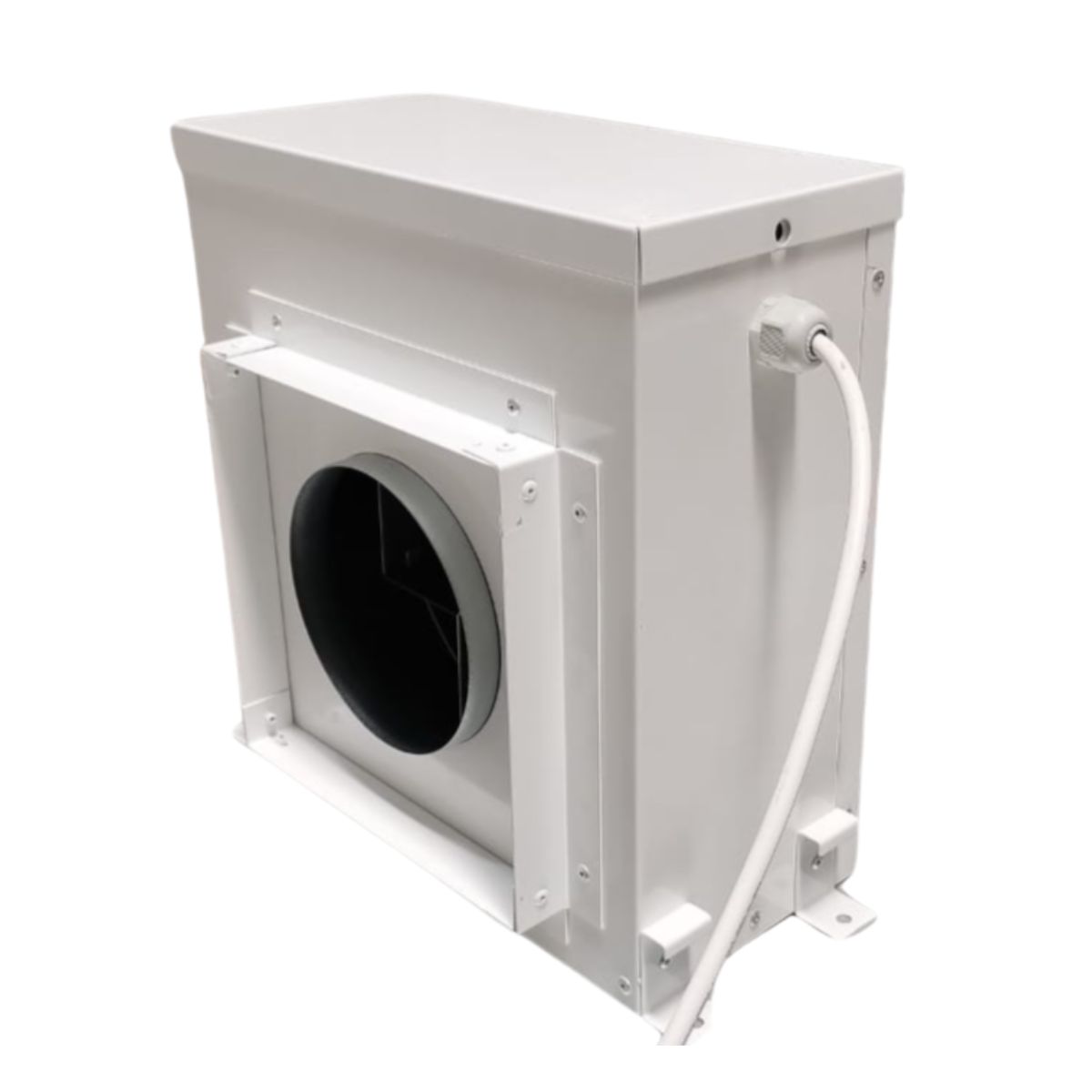

KINAIR Cabinet Inline Duct Fans are compact cabinet in-line duct centrifugal fans designed for reliable air movement in HVAC and MEP ventilation systems across the UAE, GCC, Middle East, and MENA region. With an all-metal painted sheet metal body, backward-inclined impeller, and high-pressure airflow capability, the unit is suitable for continuous, efficient, and long-distance air supply applications.
Kinetics Noise Control Inc. Products
Efficient Cabinet In-Line Duct Centrifugal Fan
KINAIR Cabinet Inline Duct Fans are engineered for duct-mounted ventilation applications where stable airflow, compact installation, and durable construction are required. The fan is manufactured with an all-metal body that provides strong anti-corrosion ability, making it suitable for demanding HVAC, building services, and mechanical ventilation projects in the UAE, GCC, Middle East, and MENA region.
Optimized Airflow and Compact Design
The fan body is made from eco-friendly material with a compact cabinet design. Its backward-inclined impeller and optimized air duct design help ensure continuous and high-efficiency air supply, with adequate air volume for ventilation systems. The new casing is more compact and rational in its molding line, helping improve overall fan efficiency and installation coordination within ductwork.
Motor, Control, and Durability
KINAIR Cabinet Inline Duct Fans are available with AC motor or EC motor options. Fan speed can be controlled using voltage or frequency variation regulators, providing flexibility for different HVAC operating requirements. The unit incorporates an IP44 protection motor, F-class insulation external rotor motor, IP68 electrical gland, and ball bearings with a long working life of over 50,000 hours. The operating temperature range is -20°C to 70°C.
Performance and Model Range
The product range includes KVF-100M, KVF-125M, KVF-150M, KVF-160M, KVF-200M, KVF-250M, and KVF-315M models. The AC motor version operates at 220V/50Hz, with performance parameters covering airflow, noise level, static pressure, rotation speed, duct dimension, applicable area, and unit size. The documented model range includes air volumes from 270 m³/h to 1430 m³/h and static pressure values from 310 Pa to 760 Pa, depending on model selection.
