FHS & FHSL Seismic Control Spring Isolator

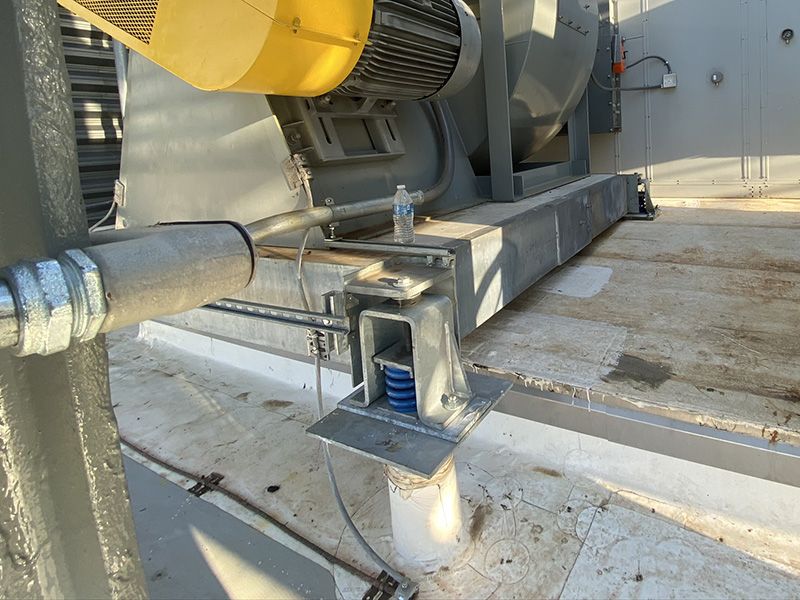

Kinetics FHS and FHSL seismic control spring isolators combine high-performance vibration isolation with multidirectional seismic restraint for floor-mounted HVAC and mechanical equipment. Designed for applications where equipment must remain isolated during normal operation but restrained during an earthquake or other external event, the isolators help reduce structure-borne noise and vibration while limiting excessive vertical and lateral movement.

Kinetics Group provides technical selection, supply and project support for seismic spring isolators across the UAE, Saudi Arabia, the GCC and the wider MENA region. Typical applications include chillers, air-handling units, pumps, fans, generators and other equipment installed near noise-sensitive or operationally critical spaces.

Product Details

Kinetics Noise Control Inc. Products

Product Description

Seismic Spring Isolation for Mechanical Equipment

KINETICS® FHS & FHSL Seismic Control Spring Isolators reduce the transmission of noise and vibration from supported mechanical equipment into the supporting structure. They suit equipment located near critically quiet areas where vibration control matters and where the isolated equipment may also face external earthquake forces.

These seismic control spring isolators support HVAC, mechanical, and building services equipment in commercial, healthcare, education, hospitality, industrial, infrastructure, and data center projects. As a result, they help project teams address both day-to-day vibration isolation and seismic movement control within one engineered isolator assembly.

How FHS & FHSL Isolators Work

FHS/FHSL seismic control spring isolators meet the specifications for Kinetics FDS isolators. In addition, FHS isolators include a steel housing assembly that limits both lateral and vertical movement of supported equipment during an earthquake. This housing controls seismic displacement without degrading the vibration isolation of the spring during normal equipment operation.

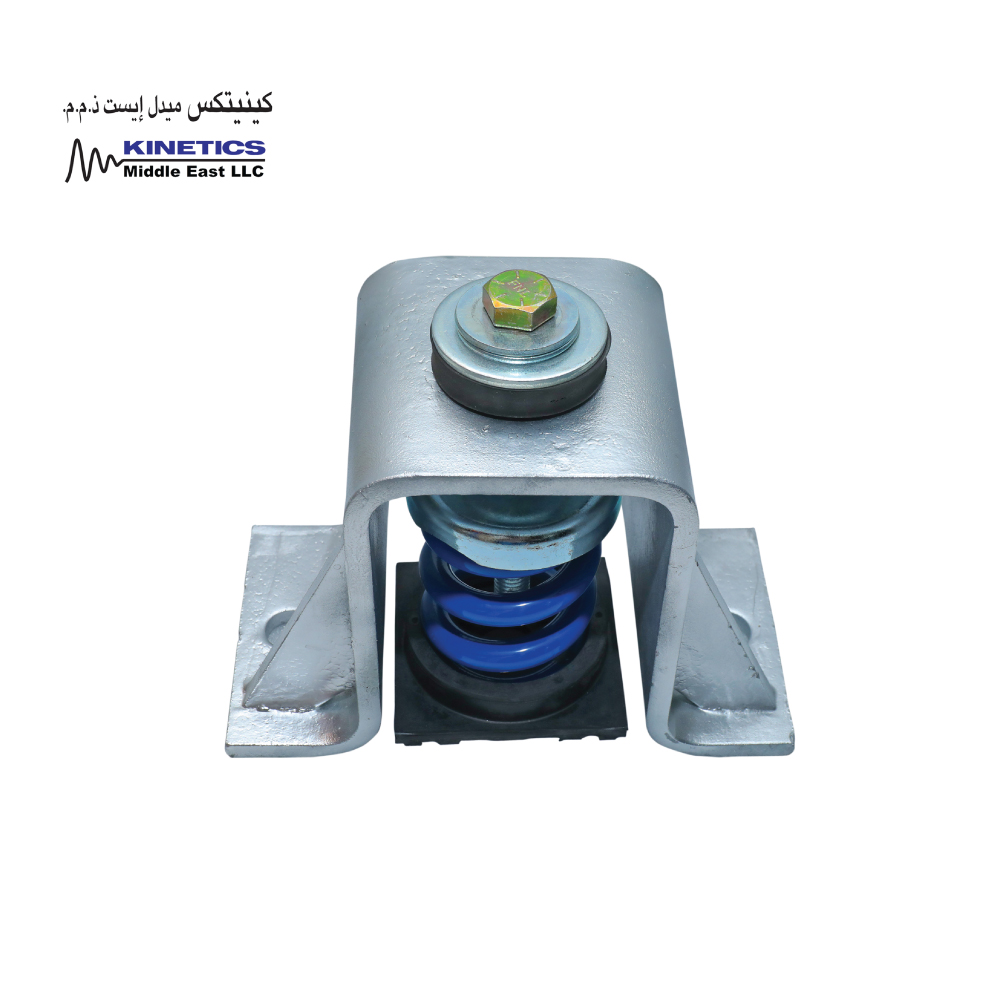

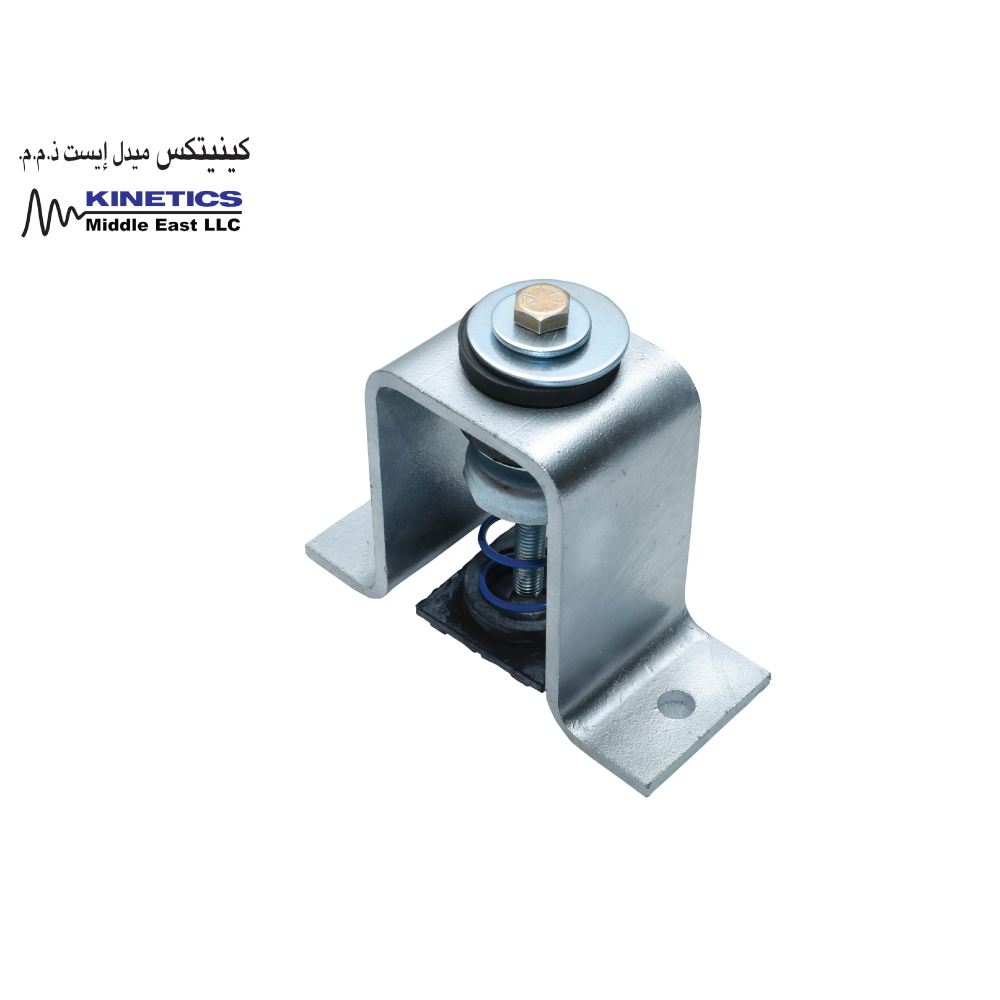

Each isolator incorporates a steel housing that encloses a neoprene snubber. A neoprene pad, fitted in series with the spring, forms part of the load path. Equipment attaches by a bolt screwed downward through the equipment foot. Since the isolator has no protruding stud, servicing remains quick and practical because crews can remove the isolator without lifting or disturbing the supported equipment.

Seismic Restraint and Motion Control

KINETICS® FHS & FHSL isolators limit equipment motion to approximately 0.2″ (5 mm) in any direction at the isolator. The snubbing grommet system prevents direct metal-to-metal contact between the supported member and the fixed housing.

In conformance with current building code standards, the restraining system is designed to withstand a minimum 1.0 g acceleration force. For seismic loading conditions, anchorage of FHS/FHSL isolators should be designed by a professional engineer. The isolators should also be selected based on calculated anticipated forces.

When the capacity of anchorage hardware in concrete does not meet the required seismic loading, an adapter plate can allow the use of more or larger anchors. Depending on the load and seismic code, an optional steel load spreader plate may also distribute the load among concrete anchors.

Specification and Project Resources

KINETICS® FHS & FHSL Seismic Control Spring Isolators are listed as ASHRAE Type 4 Isolators and align with Division 23 HVAC specification references, including Section 230548: Vibration Isolation and Section 230549: Seismic/Wind Restraints.

Available resources include a data sheet, installation guidelines, and coil corrosion protection options. Design coordination assets include FHS Isolator 3D, PDF, and DWG files; FHS Isolator with optional oversized baseplates in PDF and DWG formats; FHS and FHSL submittal drawings; and BIM objects for project documentation.

FHS submittal drawings include FHS-1-12/3500, FHS-2-100/1975, FHS-2-2000/4500, and FHS-4-100/5800, with metric drawing options. FHSL submittal drawings include FHSL-1-12/385, FHSL-B-1-12/385, FHSL-P-1-12/385, and FHSL-2-25/416, also with metric drawing options. FHS BIM objects include FHS-1-35/3500, FHS-2-100/1975, FHS-2-2000/4500, and FHS-4-100/5800. FHSL BIM objects include FHSL-1-35/370 and FHSL-2-25/416.

The product also carries California Pre-Approval Number R-0433. A listed project focus for this isolator is The Universities at Shady Grove Biomedical Sciences and Engineering Building.

RESOURCES

Data Sheet

Installation Guidelines

Coil Corrosion Protection Options



SPECIFICATION DETAILS

DIVISION 23 HVAC

Section 230548: Vibration Isolation

Section 230549: Seismic/Wind Restraints



ASHRAE Type 4 Isolator

FHS ISOLATOR

3D

PDF

DWG



FHS ISOLATOR W/ OPTIONAL OVERSIZED BASEPLATES

PDF

DWG



FHS SUBMITTAL DRAWINGS

(m) Signifies Metric Drawing



FHSL SUBMITTAL DRAWINGS

(m) Signifies Metric Drawing

Application

  • Vibration isolation for HVAC and mechanical equipment near critically quiet areas
  • Seismic restraint for supported mechanical equipment exposed to earthquake forces
  • Mechanical rooms, chiller plants, pump rooms, and plantroom equipment bases
  • Hospitals, laboratories, biomedical facilities, schools, hotels, and commercial buildings
  • Data centers, industrial facilities, infrastructure projects, and MEP service areas
  • Projects requiring Division 23 vibration isolation and seismic/wind restraint coordination
  • Equipment installations requiring submittal drawings, BIM objects, PDF, DWG, and 3D coordination files
  • Life support and emergency equipment applications where seismic motion control helps equipment remain in position



Features & Benefits

  • All-directional restraint with vertical limit stops for controlled seismic movement
  • Field-interchangeable spring coils for flexible maintenance and service planning
  • Galvanized housing for durable protection in mechanical equipment environments
  • Polyester powder coated coils for added corrosion protection support
  • Constant free height and operating height for consistent installation alignment
  • Steel housing assembly limits lateral and vertical equipment movement during seismic events
  • Neoprene snubber and snubbing grommet system help prevent direct metal-to-metal contact
  • Equipment motion limited to approximately 0.2″ (5 mm) in all directions at the isolator
  • Restraining system designed to withstand a minimum 1.0 g acceleration force
  • Optional steel load spreader plate can distribute load among concrete anchors
  • Adapter plate option can support more or larger anchors where anchorage capacity requires it
  • Neoprene pad in series with the spring supports the isolator load path
  • Downward bolt attachment through the equipment foot supports practical installation
  • No protruding stud allows faster isolator removal without lifting or disturbing the equipment
  • Supports noise reduction and vibration control for sensitive occupied spaces
  • Helps protect mechanical equipment, supporting structures, and MEP systems during seismic movement
  • Provides consultant-friendly specification support for HVAC vibration isolation and seismic/wind restraint sections
  • Suitable for UAE, GCC, Middle East, and MENA projects requiring coordinated vibration and seismic restraint solutions
