Room isolation designs are only as good as their weakest link, and residential doors present several challenges that can be met with Kinetics’ line of wood acoustical doors. First, the door itself, if not well-constructed, will transmit sound energy from one room to another. Second, air gaps around the perimeter of the door, if not sealed, are easy pathways for sound to transfer to adjacent spaces. Additionally, most sound-rated doors are made of metal and are not attractive in residential environments.
Kinetics offers custom-manufactured STC-49 and STC-35 sound-rated acoustical doors which have been specifically designed for residential environments and offer a wide variety of standard and custom wood finishes, sizes, and acoustical seals.
Kinetics Noise Control Inc. Products
| STC 49 | KWAD-49 Provides superior performance for critical room isolation designs |
|---|---|
| STC 35 | KWAD-35 Provides a cost-effective improvement over typical residential doors |
| STC 15-20 | Typical residential doors |
Full test reports available upon request
Construction

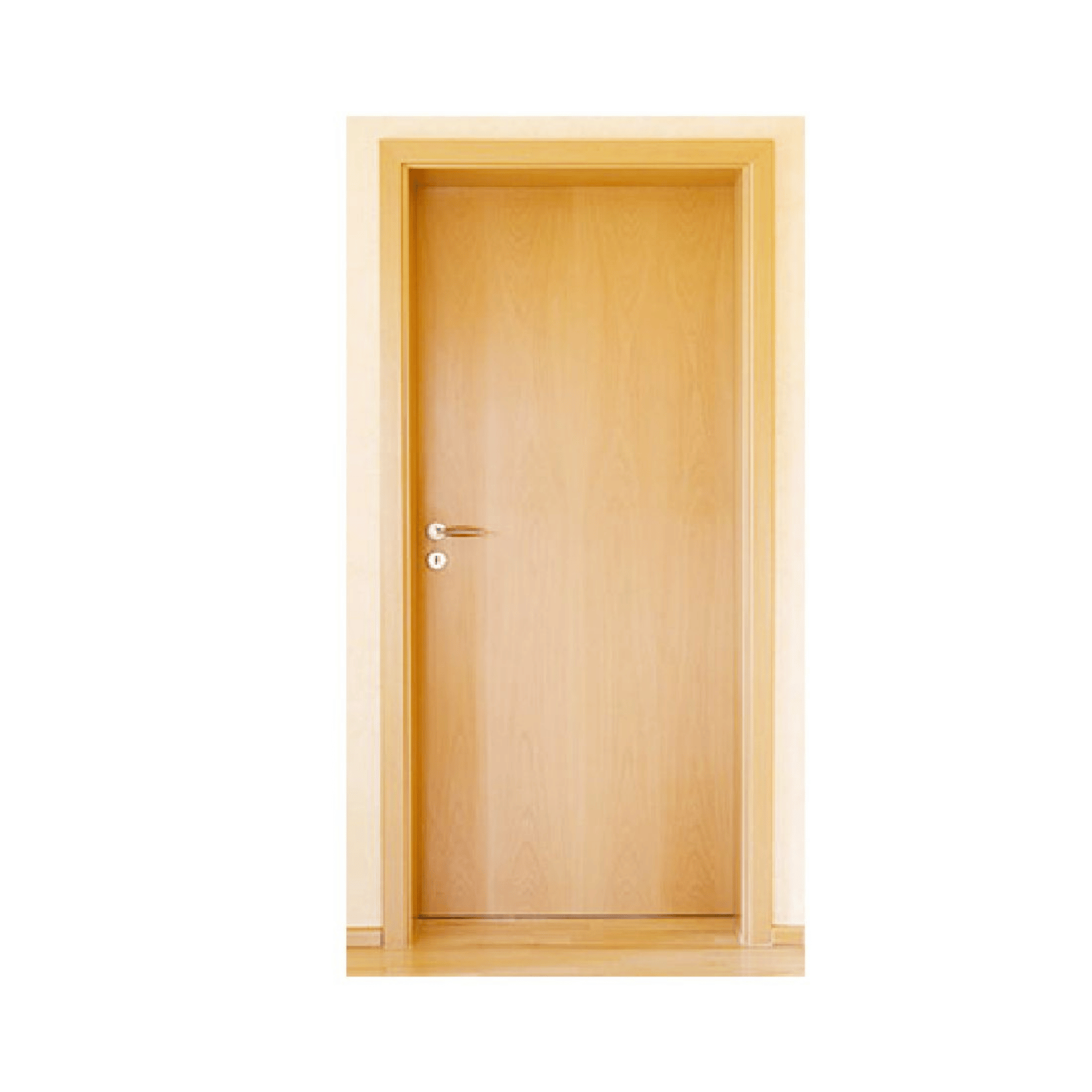

Kinetics acoustical wood doors are made with lab-tested noise control core materials and are finished in a variety of high-quality woods.
Kinetics acoustical doors include a standard set of sound-rated gaskets that consist of head/jamb seals (for sides and top) and sweeps (for door bottoms).
Standard Configurations
| Wood | Maple |
| Doors | 36″ x 80″ 36″ x 84″ |
| Thickness | 1-3/4″ |
| Jamb | Maple, up to 6-3/4″ deep, pre-hung |
| Hinges | Three 4-1/2″, fully mortised, heavy-duty ball bearings, brushed stainless steel |
| Weight | 7.8#/sq ft (STC 35) 9.2#/sq ft (STC 49) |
Finishes
Unfinished (stainable)
Smooth-skinned and capable of receiving surface-mounted, raised-panel detail trim
Optional Configurations
| Woods | Poplar, Oak, Cherry Many other custom veneers |
| Dimensions | Single Doors: Up to 48″ W, 120″ H Double doors and jamb also available |
Kinetics offers a variety of standard and optional perimeter gasketing products to seal the air gaps between the door, the door jamb, and the floor.
Standard Products
Pre-hung assemblies include all perimeter gasketing and consist of the following:
Slab-only assemblies include factory-assembled sweeps. Saddles and seals are also furnished for field installation.
Optional Products
Finishes
Standard finishes are anodized aluminum.
Optional finishes include Bronze, Gold Anodized, and Dark Anodized Bronze. (Not all finishes are avilable for each item.)
Consider these and other materials, available for purchase separately, to retro-fit existing doors for improved sound control in the field.
