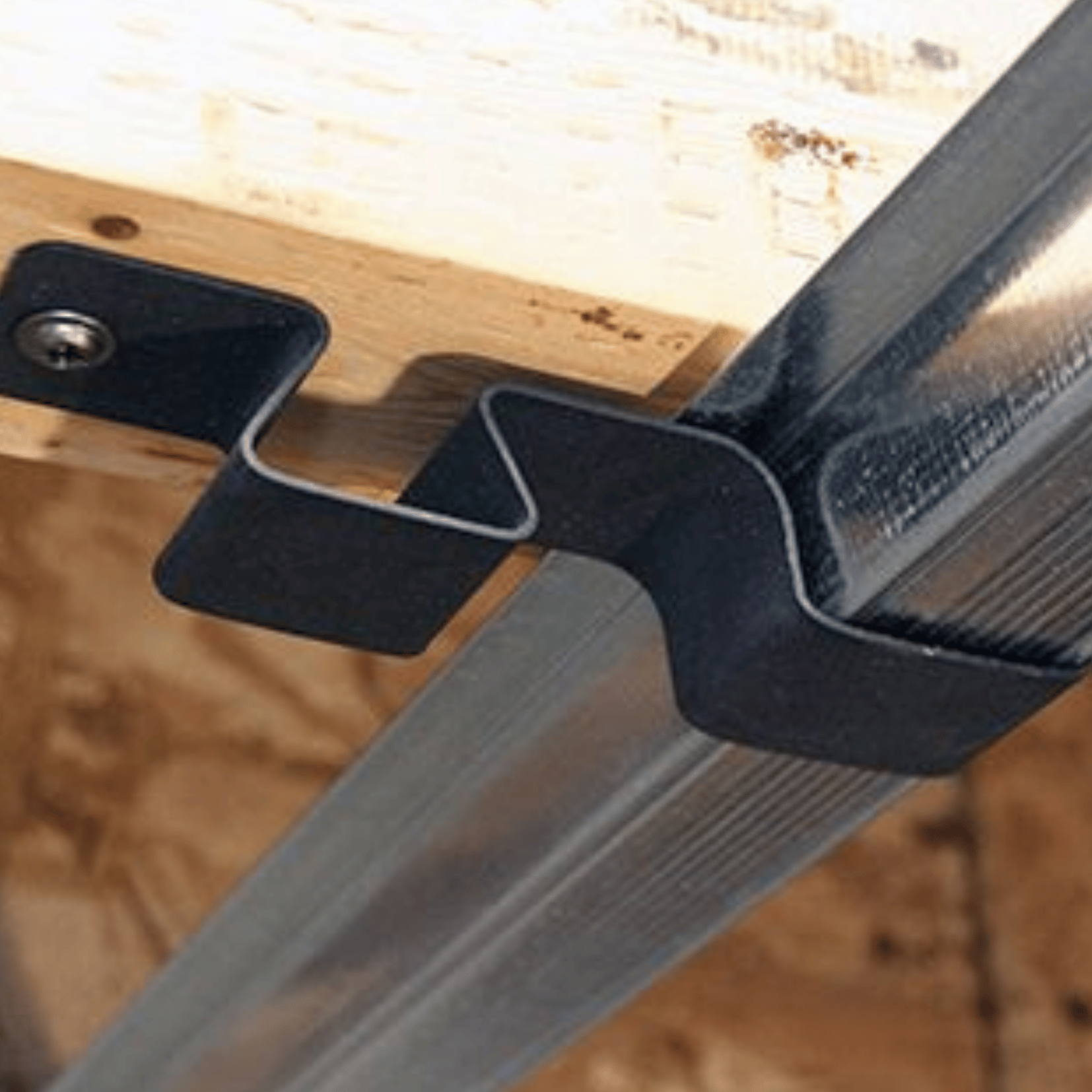

WAVE Hanger-Noise Control Ceiling Hanger

A revolutionary noise control ceiling hanger. The essential component for “better than code” noise reduction in wood-framed projects. Unique leaf spring design delivers exceptional noise control at annoying lower frequencies. Ready to ride the WAVE?



Enquire Now

Product Details

Kinetics Noise Control Inc. Products

Product Description

Acoustical Performance

  • Out-performs resilient channel and sound clips
  • 15-dB ISPL (impact) improvement over resilient channel at 50-Hz
  • 6-dB TL (airborne) improvement over resilient channel at 50-Hz
  • Two IIC 56+, STC 60 assemblies
  • Low Flooring Profile – IIC 56/57 (ceramic tile/wood) performance with only 1/8 inch (3mm) floor buildup
  • Use with Kinetics IsoLayment BR or HB (3-mm) noise control floor underlayment

Simple Floor/Ceiling Designs

  • Highest performance-to-cost value for wood-framed floor/ceilings
  • Fastens to all wood structural framing
  • Fire-rated assemblies cover all types of typical wood joists/trusses
  • Cement board buildup not required beneath ceramic tile
  • Seismic categories: A, B, C, D, E, F

Application

Features & Benefits

Installation Guidelines

Available Downloads Options

Datasheet
PDF
Open File
Installation Guide
Open File
Technical Manual
Open File
CAD
Drawings
Open File
Test
Reports
Open File
