Description
The control of noise in modern buildings due to air-conditioning is a normal procedure in most projects. Kinetics designs and manufactures a complete line of pressurized plenum enclosures for heating, ventilating and air-conditioning installations. Designed to be erected in the field, our panel enclosures provide thermal and optimum noise control through sound absorption and sound transmission loss.
Example Details
Air Intake Plenum with Acoustical Louver

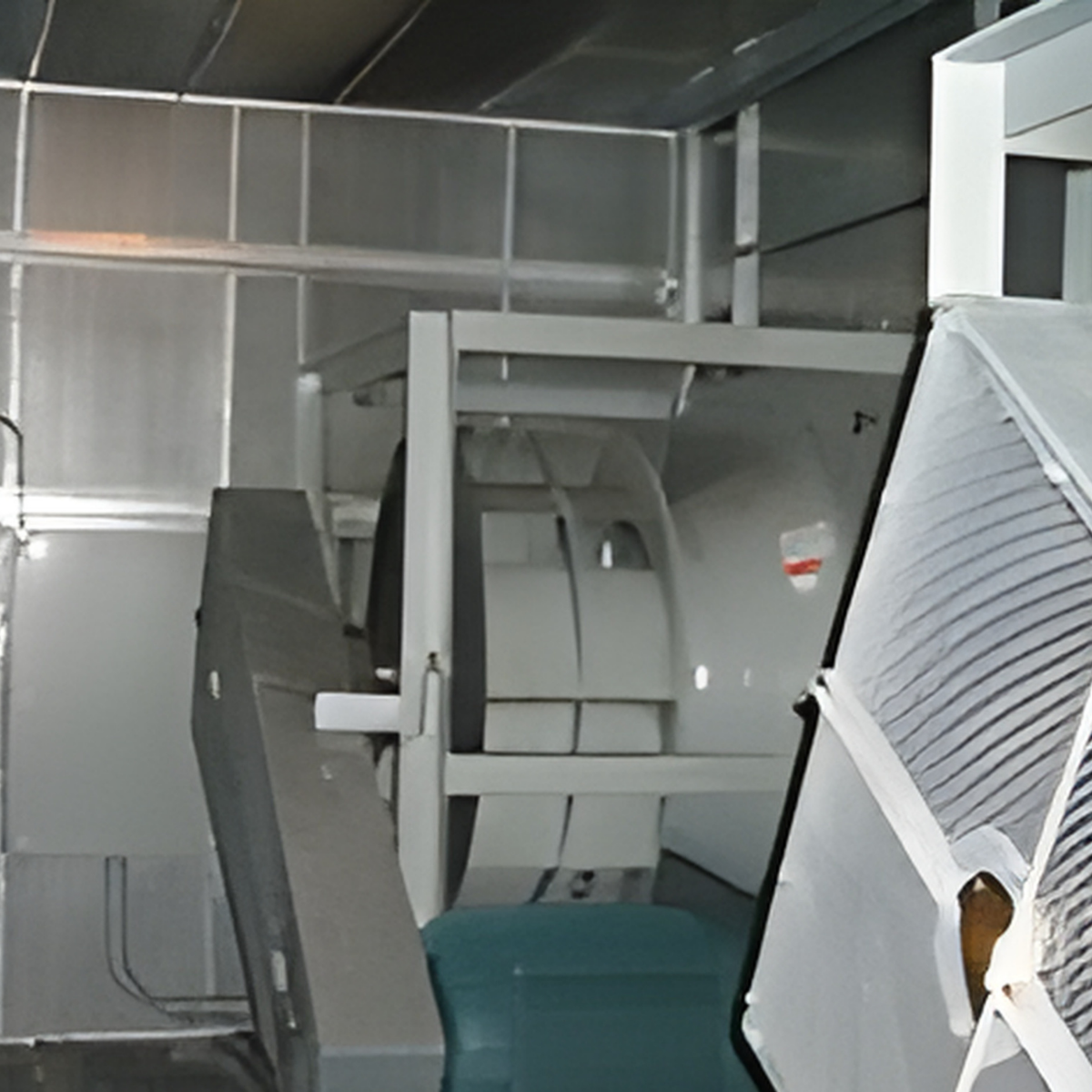

Built-up Air Handling Unit Casing
Control Room Equipment Casing
Application
- Built-up Air Handling Units
- Panel Duct Systems
- Outside and Exhaust Air Plenums
- Supply and Return Air Handling Systems
Products Overview
- 2-, 4-, 6-inch thick
- 18 Gage Solid / 22 Gage Perforated Skins
- Galvanized/Stainless/Aluminum
- Tongue and Groove Panel Connections
- Access Doors with Airtight Seals
- Double-Glazed Wire Reinforced Door Windows
- Removable Panel Sections
- Factory Located Duct Penetrations
- Plenums are Structurally Designed Based on the Internal Positive or Negative Operating Static Pressure with a Maximum L/240 Deflection
- AutoCAD Submittal and Piece-Marked Installation Drawings
Kinetics offers complete design and engineering assistance including layout, as well as, providing acoustical, structural and ventilation requirements.
