Features
- Solid rounded noses shaped for minimum pressure drop
- Absorptive acoustic baffles in a duct-like casing, proportioned for optimum performance
- 1 in. (25.4 mm) slip flange standard (longer flanges available on request)
Applications
- Fan Inlet and Discharge
- Air Handling Units
- Cooling Towers
- Radiators
- HVAC Duct Systems and Commercial, Institutional and Industrial Buildings
Types
- Elbow Dissipative
- Straight Dissipative
- Cross Talk
- Reactive (No-Fill), Elbow and Straight
- Axial Cone
- Transitional
- Custom
Options
- Square-to-round transitions
- Angle flanges with matching drilled holes
- Special designs as required
Special Designs Available
Configuring a Silencer

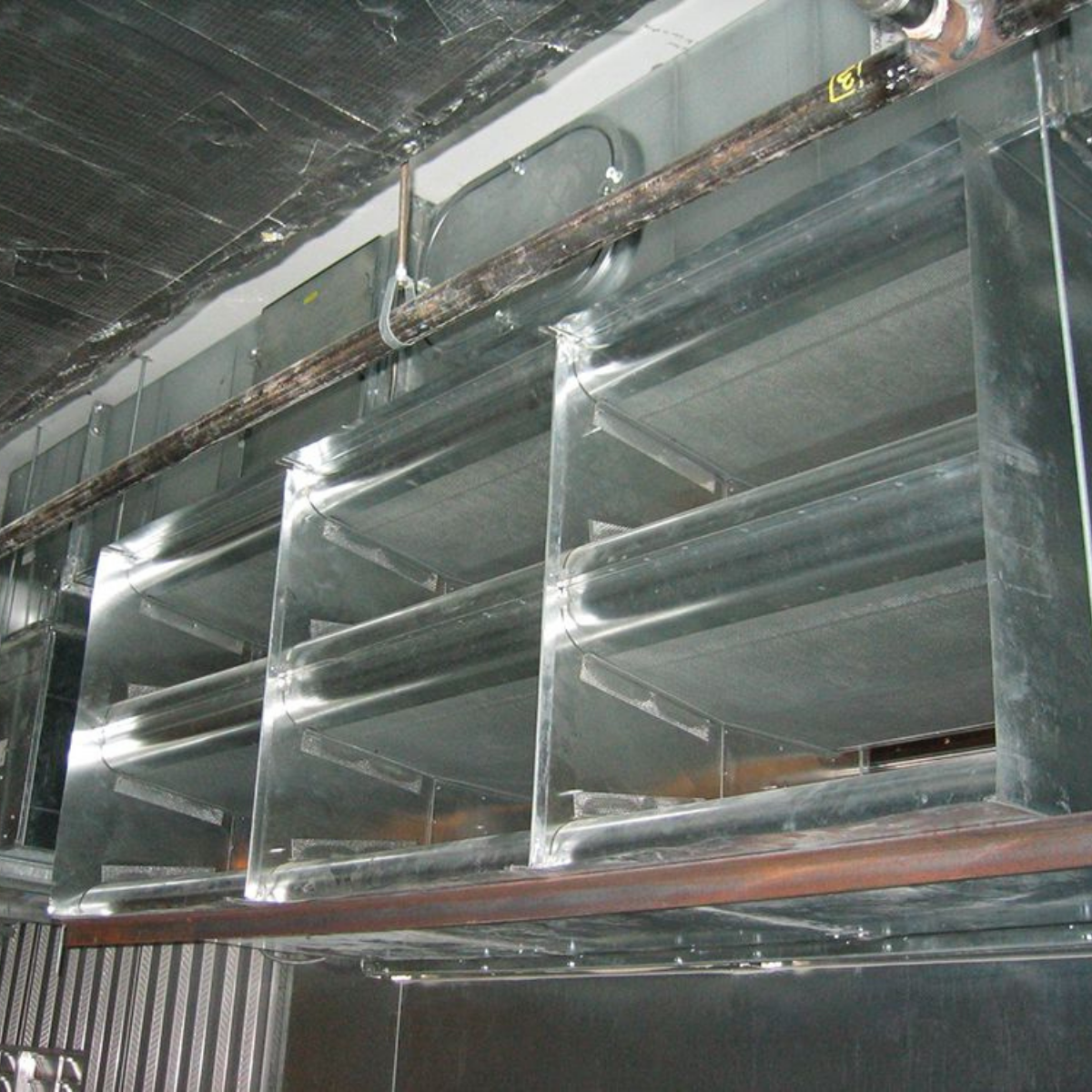

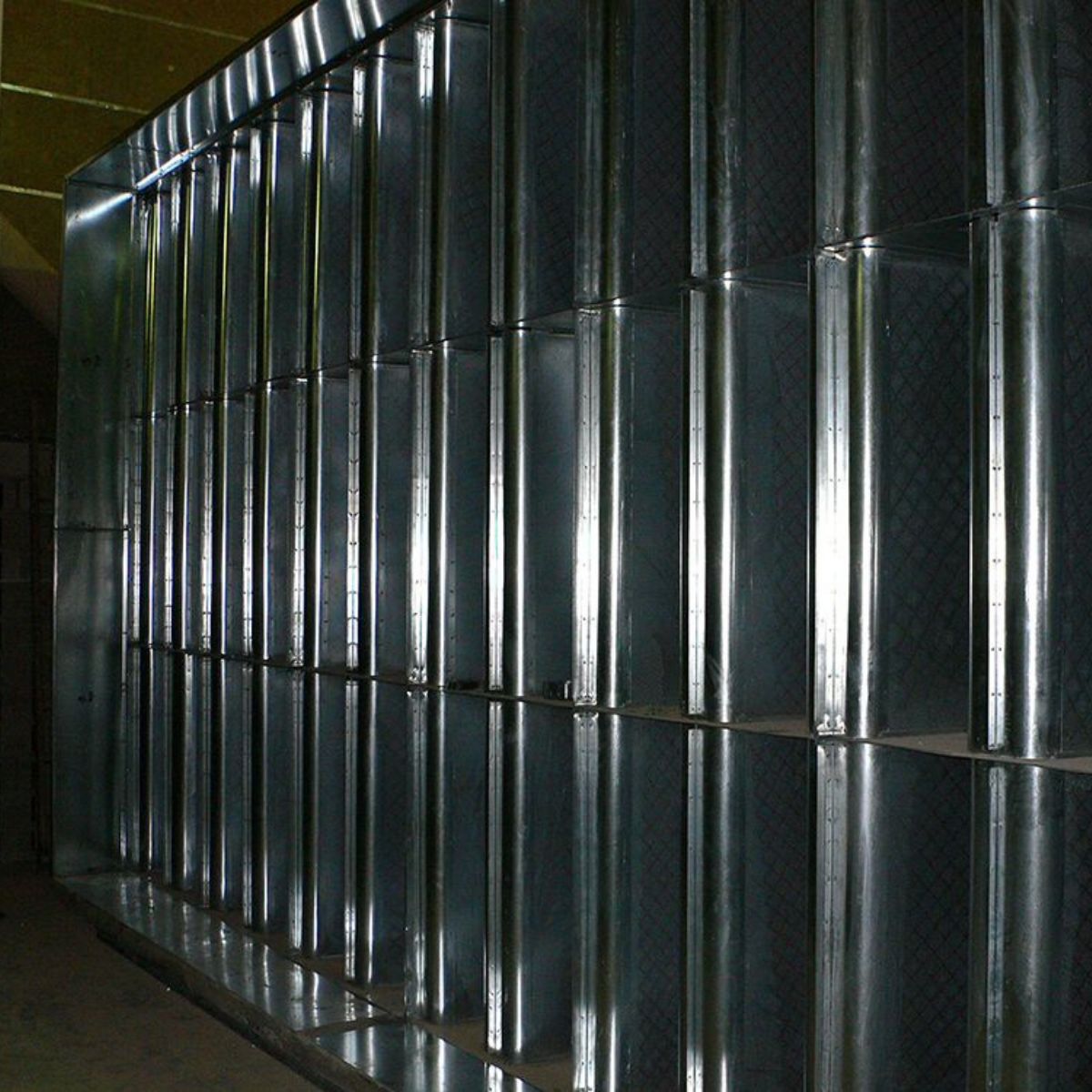

A silencer may consist of single or multiple silencer units (2 full units illustrated at right). Each full unit consists of two acoustic half-baffles and a central air passage. A silencer may be made up in several configurations using different unit sizes. A silencer with dimension “M” of 24 in. (610 mm) can be made from one 24 in. (610 mm) unit, or 12 in. (305 mm) units.
*All Kinetics silencers are backed by independent testing in a NVLAP accredited laboratory in accordance with ASTM E477-06a and AMCA 1011-03.
