Description

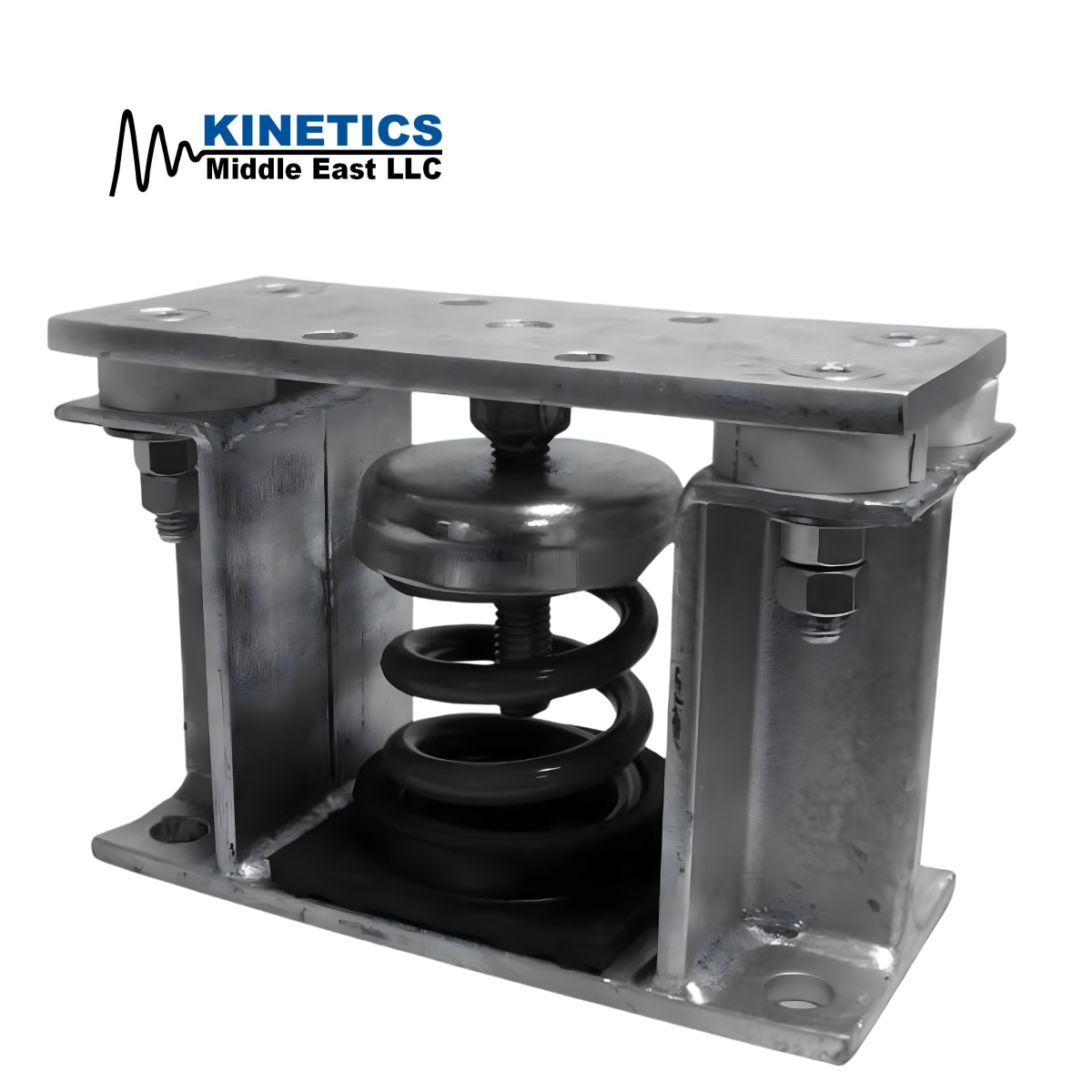

Kinetics Model FLSS Seismic Control Restrained Spring Vibration Isolators consist of free-standing, large diameter, laterally stable steel springs assembled into welded steel housing assemblies. The housings are fabricated to limit vertical movement of the isolated equipment if equipment loads are reduced or if the equipment is subjected to large external forces such as high winds or seismic events. The housings also provide a constant free and operating height to facilitate installation.
Spring elements are complete with internal noise isolation pads and bolts as a part of the top load plate assembly. Holes are provided in all isolators for bolting to the structure and the supported equipment. To assure stability, the springs have a lateral spring stiffness greater than 1.2 times the rated vertical stiffness and are designed to provide a minimum overload capacity of 50%.
Model FLSS isolators are available with deflections to 2″ (50 mm) and with load capacities to 18,000 lbs. (8165 kg) as standard products. Custom isolators with higher deflection and greater load capabilities are also available. Kinetics Model FLSS Spring Isolators are recommended for the isolation of vibration produced by equipment carrying a large fluid load which may be drained, such as boilers and chillers, and for the isolation of cooling towers, air- cooled condensers, etc., where motion due to wind loads must be minimised.
Application
Kinetics Model FLSS Seismic Control Restraint Spring Isolators are recommended as a noise and
vibration isolator for mechanical equipment under the following conditions:
1. When the mechanical equipment is located above or near noise and vibration sensitive areas.
2. When the mechanical equipment is subjected to seismic events, high wind loads or other external forces.
3. When the equipment to be isolated has significant changes of weight due to fluid drainage during maintenance operations such as boilers, chillers and cooling towers.
Operating static deflections are available up to 2″ (50 mm) to maintain a high degree of noise and vibration control while compensating for long span flexible floor structures.
Specifications
Vibration isolators shall be seismically rated, restrained spring isolators for equipment which is subject to load variations and large external forces. Isolators shall consist of large diameter, laterally stable, steel springs assembled into welded steel housing assemblies designed to limit movement of the supported equipment in all directions.
Housing assembly shall be of fabricated steel members and shall consist of a top load plate complete with adjusting and levelling bolts, adjustable vertical restraints, isolation washers, and a bottom plate with internal non-skid noise isolation pads and holes for anchoring of housing to supporting structure. Housing shall be hot-dip galvanised for corrosion resistance. Housing shall be designed to provide a constant free and operating height within 1/8″ (3 mm).
The isolator housing shall provide a minimum of 1g restraint in all directions.
Spring elements shall be selected to provide static deflections as shown on the vibration isolation schedule or as indicated or required in the project documents. Springs shall be color coded or otherwise identified.
Spring elements shall have a lateral stiffness greater than 1.2 times the rated vertical stiffness and shall be designed to provide a minimum of 50% overload capacity. Non-welded spring elements shall be polyester powder coated, and shall have a 1000 hr rating when tested in accordance with ASTM B-117.
