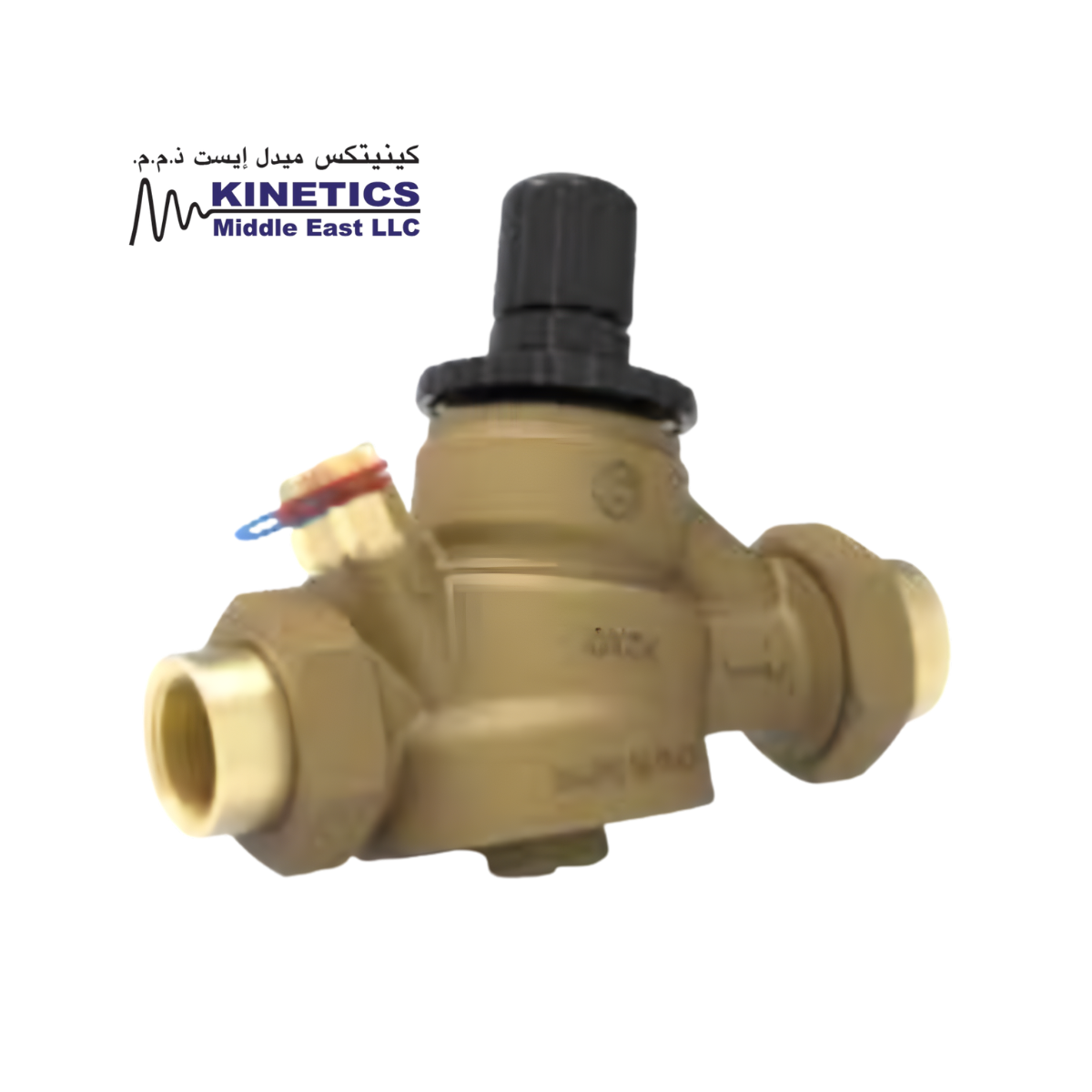

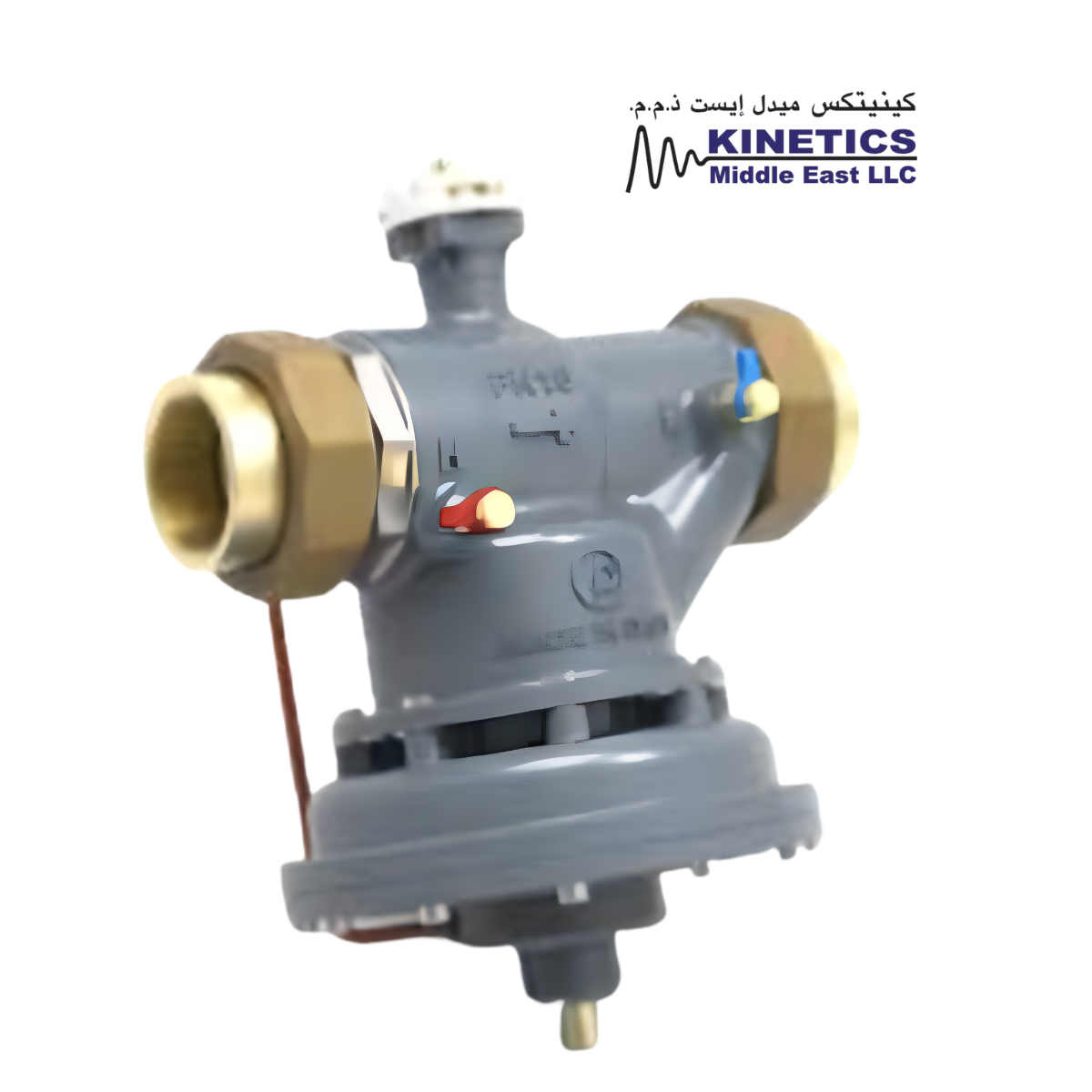

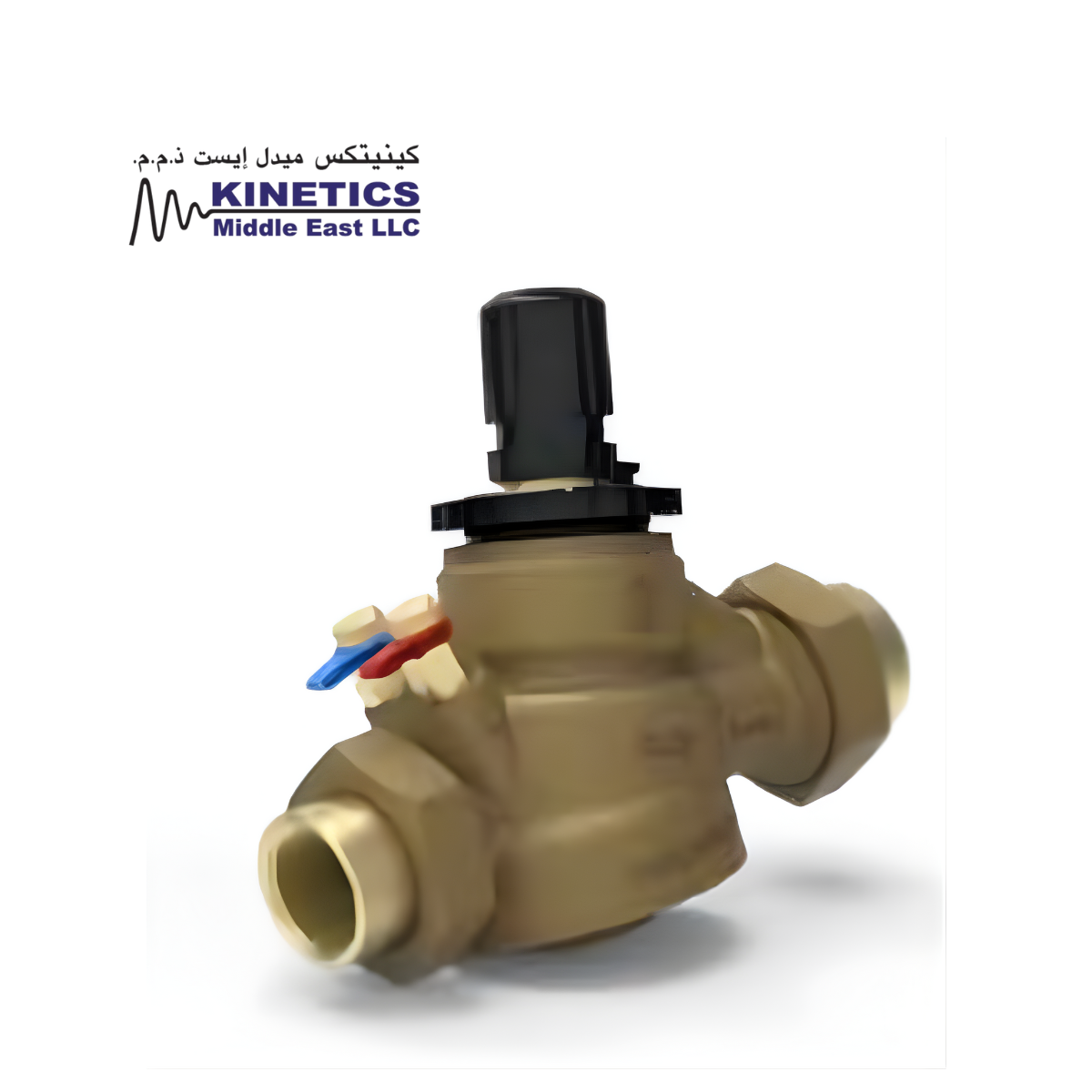

Kinetics EvoPICV – Pressure Independent Control Valves

The Kinetics EvoPICV Pressure Independent Control Valve (PICV Series) is a high-performance solution for hydronic HVAC systems, combining flow regulation, pressure control, and temperature modulation in a single compact unit. Designed for precise flow balancing and energy-efficient temperature control, the EvoPICV ensures constant flow rates and full authority control regardless of system pressure fluctuations — making it ideal for variable and constant flow applications.

With an integrated differential pressure regulator, equal percentage control valve, and flow presetting mechanism, the EvoPICV provides unmatched accuracy, reliability, and control stability. The diaphragm-based pressure regulation system maintains constant differential pressure across the valve seat, ensuring consistent flow performance and eliminating the need for separate balancing valves.

Key Features & Benefits

•  Pressure Independent Control: Maintains constant flow despite system pressure changes, ensuring stable performance.

•  3-in-1 Design: Combines differential pressure regulator, control valve, and flow limiter for simplified installation.

•  High Accuracy: ±5% flow control accuracy up to 6 bar differential pressure.

•  Energy Efficiency: Reduces pump energy consumption and improves HVAC system performance.

•  Temperature Range: -10°C to +120°C for heating and cooling systems.

•  Working Pressure: Up to 25 bar (models up to 2” handle 16 bar).

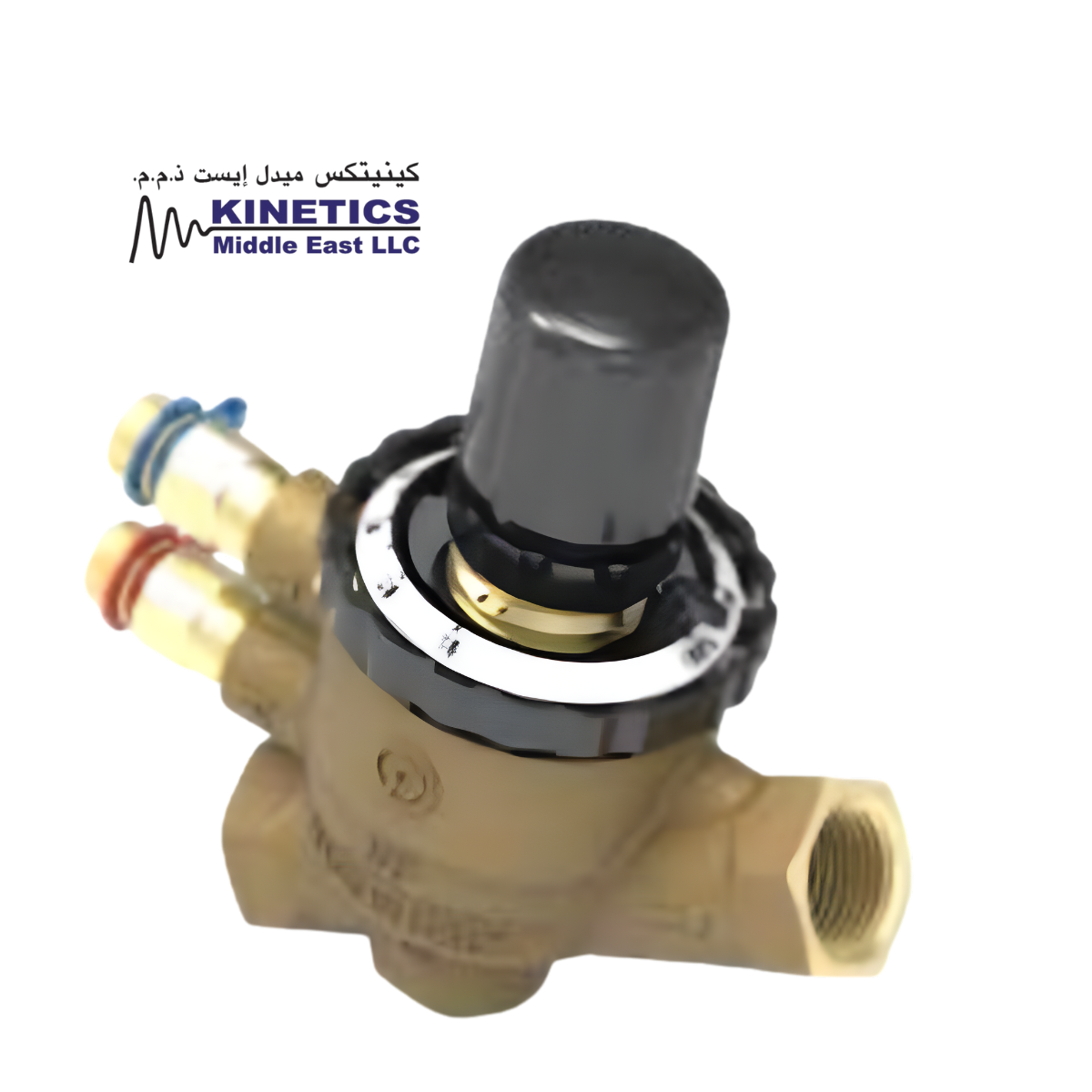

•  Easy Presetting: Flow rates can be manually adjusted and locked via the graduated knob.

•  Maintenance-Friendly: Removable diaphragm allows flushing, cleaning, and troubleshooting without disassembly.

•  Actuator Compatible: Suitable for both manual and motorized operation with rotary actuators.

Technical Specifications

• Differential Pressure Range: 0–6 bar

• Flow Range: 150 l/h to 500,000 l/h (varies by model)

• Connection Types:

  • Threaded (Rp/Rc) EN 10226-1 or NPT for ½” to 2”

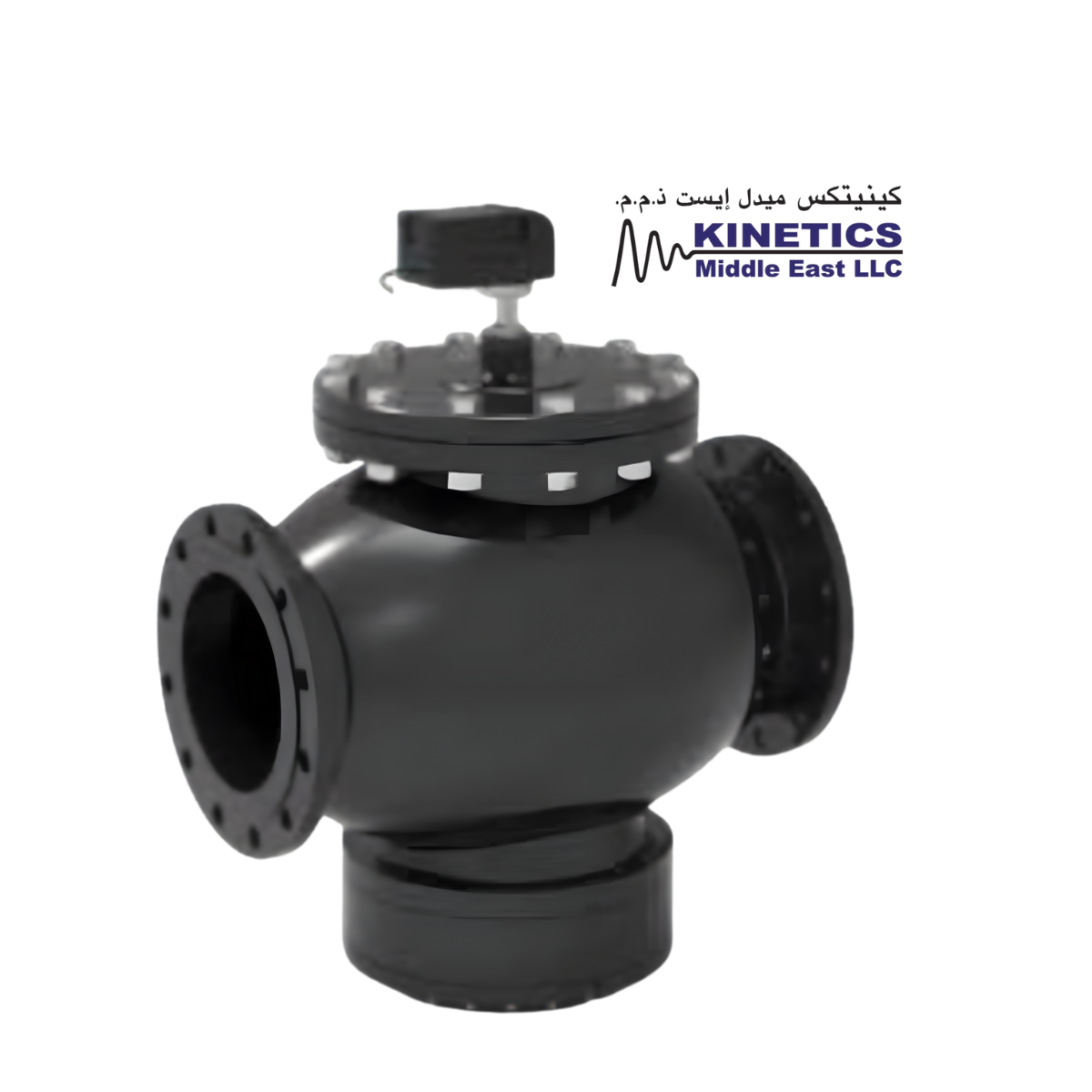

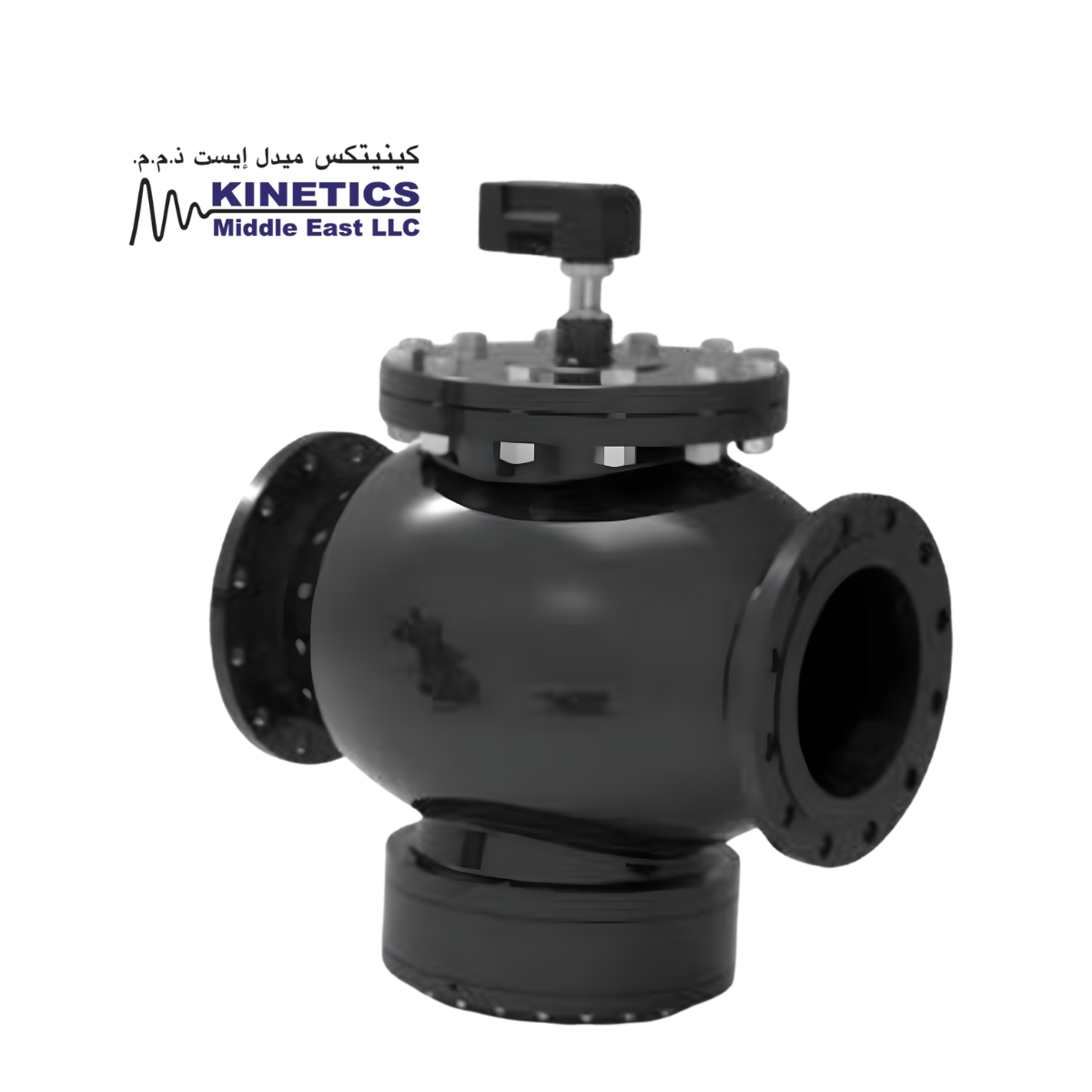

  • Flanged EN 1092-2 for 2” to 10”

• Body Materials: Brass, Ductile Iron (94F Series)

• Control Characteristics: Equal percentage or linear (selectable on large sizes)

• Stroke Range: 3 mm – 6 mm (small sizes) / 90° rotary (large sizes)

Applications

•  Commercial HVAC systems (chilled water and heating loops)

•  District cooling and heating networks

•  Fan coil units (FCUs), AHUs, and heat exchangers

•  Building automation and BMS-controlled systems

•  Energy-efficient retrofits and pressure-balanced hydronic systems

Why Choose Kinetics EvoPICV

The EvoPICV Series delivers precise flow control, temperature stability, and energy savings across all HVAC applications. Its innovative design minimizes commissioning time, eliminates overflows, and improves thermal comfort — ensuring optimal system balance and long-term performance.
