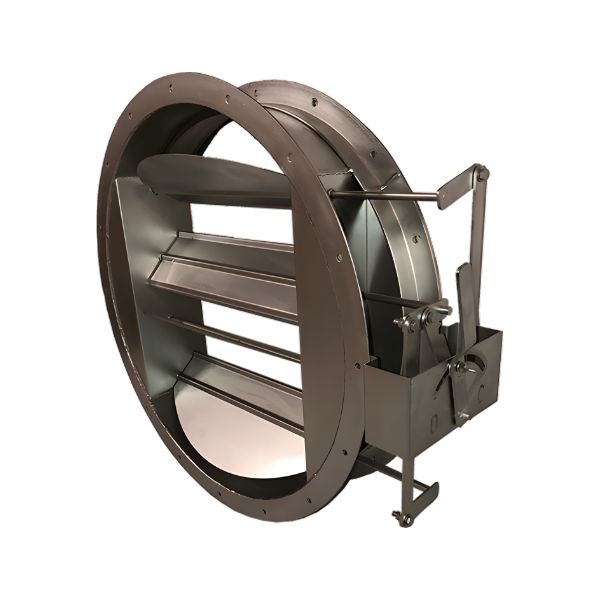

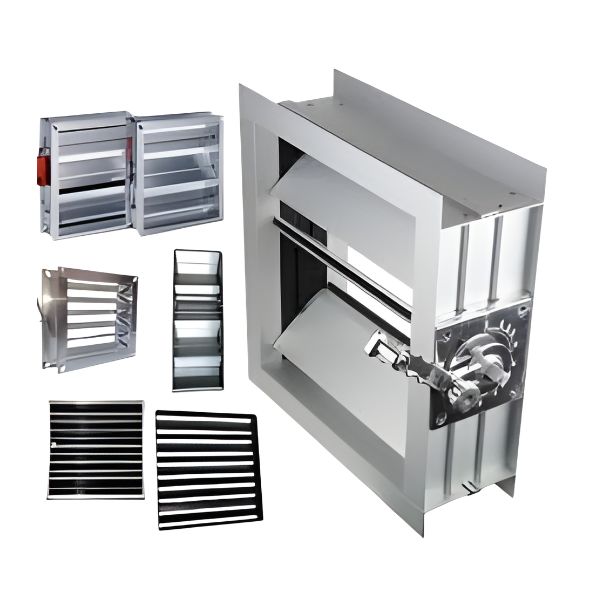

The KIN-FRD-VCD Fire-Rated Volume Control Damper is engineered to regulate and balance airflow in fire-rated HVAC supply, return and exhaust duct systems. Designed for commercial, healthcare, hospitality, data-centre, public-building and industrial projects, it combines configurable blade construction, durable metal fabrication and manual or motorized control options.
KIN-FRD-VCD can be configured with opposed or parallel blades, galvanized or stainless-steel construction, V-profile or aerofoil blades and multiple duct-fixing arrangements. Kinetics Group provides project-specific selection support based on duct dimensions, design airflow, required fire rating, installation configuration and control preference for HVAC projects across the UAE and wider MENA region.
Kinetics Noise Control Inc. Products
The KIN-FRD-VCD Fire-Rated Volume Control Damper is engineered to regulate and balance airflow in fire-rated HVAC supply, return and exhaust duct systems. It combines precise airflow control with robust metal construction for use in commercial buildings, hospitals, hotels, data centres, public facilities and industrial ventilation projects.
Designed for integration into fire-rated ductwork and compartmented HVAC zones, KIN-FRD-VCD is available with opposed or parallel blades, manual or motorized operation, multiple fixing arrangements and a choice of galvanized steel, aluminium and stainless-steel components. Its engineered blade profiles help reduce turbulence and pressure loss while supporting stable airflow and dependable system performance.
Kinetics Group provides project-specific selection support based on duct dimensions, design airflow, pressure-drop limits, required fire performance, installation configuration and control requirements for projects across the UAE, GCC, Middle East and wider MENA region.
Opposed blades:
Standard configuration for proportional airflow balancing and branch regulation.
Parallel blades:
Optional configuration for ON/OFF operation and selected control applications.
To select the correct KIN-FRD-VCD configuration, provide:
KIN-FRD-VCD offers consultants, contractors and project owners a configurable solution for coordinating airflow regulation with fire-rated HVAC duct systems. Its flexible blade, material, actuator and connection options allow the damper to be selected around project-specific duct dimensions, airflow requirements and control strategies.
Kinetics Group supports product selection, technical submittals and engineered configurations for commercial, healthcare, hospitality, data-centre and industrial projects throughout the UAE and MENA region.
A fire-rated volume control damper regulates and balances airflow in an HVAC duct system while being selected for use within an approved fire-rated duct or compartment arrangement.
KIN-FRD-VCD can be specified for supply, return and exhaust ductwork in commercial buildings, hospitals, hotels, public facilities, data centres and industrial ventilation systems.
Yes. It can be supplied with ON/OFF or modulating actuator options. Manual quadrant control with position indication and locking is also available.
Opposed blades are the standard option for airflow balancing. Parallel blades are available for ON/OFF and selected control applications.
The standard frame is galvanized steel, with stainless-steel construction available as an option. Aerofoil blades can be manufactured from galvanized steel, aluminium or stainless steel.
Connection options include flanged, hat-shaped, slip-and-clip, box-inserted, round-spigot and oval-spigot arrangements.
Kinetics requires the duct dimensions, airflow, pressure-drop requirement, fire rating, installation orientation, control type, actuator requirements, leakage requirement and preferred construction material.
Not necessarily. A combination fire-and-smoke damper requires documented compliance with both fire-resistance and smoke-leakage requirements. The exact classification of each KIN-FRD-VCD configuration should be confirmed from its current test report and certification documents.
Share your duct dimensions, design airflow, required fire rating, pressure-drop limit and control preference. The Kinetics engineering team will recommend a suitable KIN-FRD-VCD configuration for your project.
Email: sales@kineticsgroup.ae
Telephone: +971 6 568 0014
KIN-FRD-VCD is suitable for airflow regulation in:
The product is intended for projects where consultants, contractors and commissioning teams require coordinated airflow control within a documented fire-rated HVAC system.
KIN-FRD-VCD is designed for use in fire-rated HVAC systems and compartmented duct zones. Its construction supports project requirements where airflow regulation must be coordinated with the approved fire-rated duct assembly.
Benefit: Provides airflow control within critical HVAC applications without compromising the intended fire-safety strategy when selected and installed according to the approved test and certification documentation.
Opposed-blade operation is available as the standard arrangement for proportional airflow regulation across HVAC branches and zones.
Benefit: Helps commissioning engineers achieve the required airflow distribution and maintain balanced indoor environmental conditions.
V-profile and aerofoil blade options are designed to reduce turbulence and resistance as air passes through the damper.
Benefit: Supports efficient HVAC operation by minimizing unnecessary pressure losses and fan-energy demand.
The damper can be supplied with a manual quadrant, position indicator and locking mechanism. Motorized ON/OFF and modulating actuator options are also available.
Benefit: Allows the damper to be matched to manual balancing, automatic control, building-management-system and project-specific operating requirements.
The standard frame is manufactured from galvanized steel, with optional stainless-steel construction for demanding environments. Blade options include 3V-shaped steel blades and aerofoil blades manufactured from galvanized steel, aluminium or stainless steel.
Benefit: Provides long service life, structural stability and material flexibility for commercial and industrial HVAC installations.
Opposed blades are suitable for airflow-balancing applications, while parallel blades can be selected for ON/OFF and approved control duties.
Benefit: Gives consultants and contractors greater flexibility when coordinating the damper with the required HVAC control sequence.
KIN-FRD-VCD can be supplied with concealed or external linkage. Self-lubricating nylon bearings are standard, with optional brass or stainless-steel components.
Benefit: Supports smooth blade movement, reduced maintenance requirements and dependable long-term operation.
Optional blade seals, jamb seals and fire-rated rubber or silicone sealing materials are available, subject to the selected configuration.
Benefit: Improves shut-off performance and helps reduce unwanted air leakage through the duct system.
Available fixing arrangements include flanged, hat-shaped, slip-and-clip, box-inserted, round-spigot and oval-spigot configurations.
Benefit: Simplifies coordination with rectangular, round and oval duct systems and a wide range of project installation details.
The product can be configured for single-section or multi-section assemblies, subject to approved manufacturing and performance limitations.
Benefit: Supports a wider range of duct dimensions and project-specific airflow requirements.
KIN-FRD-VCD should be installed by qualified HVAC and fire-safety personnel in accordance with the approved project drawings, applicable building regulations, the product’s verified fire-test documentation and the Kinetics installation instructions.
Confirm the following before the damper is installed:
The website should link to a dedicated KIN-FRD-VCD installation manual containing the verified minimum clearances, fixing details, approved orientations, fire-stopping method, maximum dimensions and actuator requirements. The general guidance above should not replace the installation conditions stated in the product’s certified test documentation.
