RH Neoprene Isolation Hangers provide cost-effective vibration and noise isolation for suspended HVAC equipment, piping, and ductwork. Designed with a colour-coded elastomer-in-shear insert, the RH range helps reduce audible-frequency vibration in commercial, industrial, and MEP projects across the UAE, GCC, Middle East, and MENA region.
Engineered for Performance.
Kinetics Model RH is a neoprene vibration isolation hanger designed to reduce audible-frequency vibration and structure-borne noise from suspended HVAC equipment, inline and exhaust fans, piping and ductwork.
The colour-coded elastomer-in-shear insert provides static deflection from 5 mm to 15 mm, while the steel hanger bracket allows support-rod movement through a 30° arc without metal-to-metal contact. RH hangers are available in load capacities up to 907 kg and are supplied fully assembled for threaded-rod suspension systems.
The hanger bracket is engineered to withstand a 500% overload without failure. Kinetics Group provides RH hanger selection, technical submittals and project support for HVAC and MEP projects across the UAE, GCC and MENA region.
Product Overview

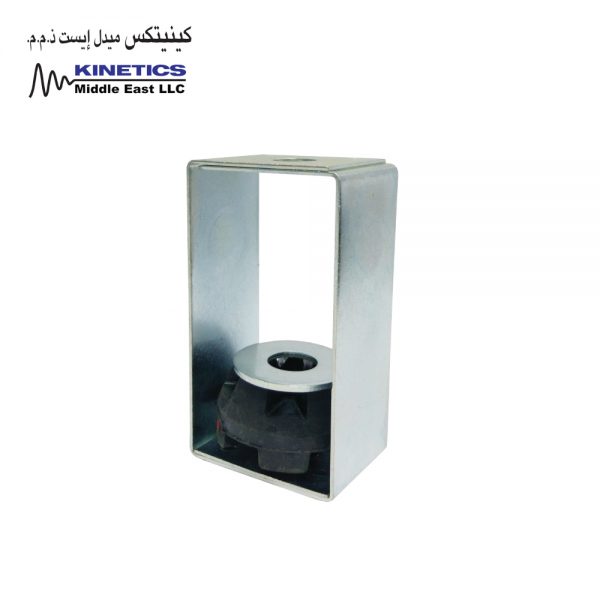

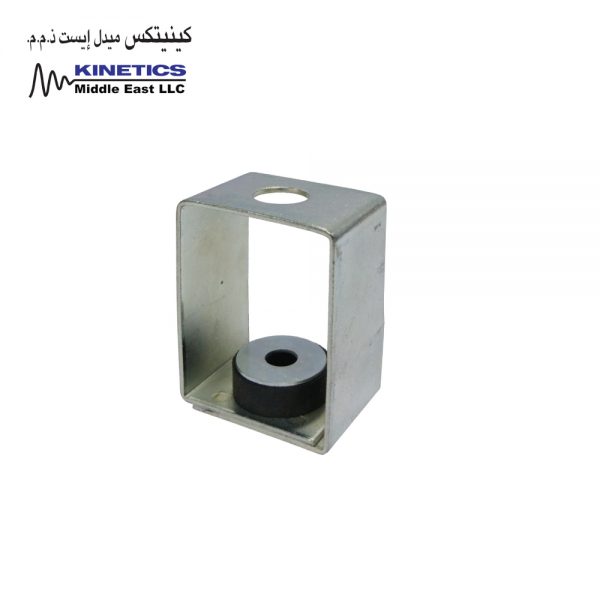

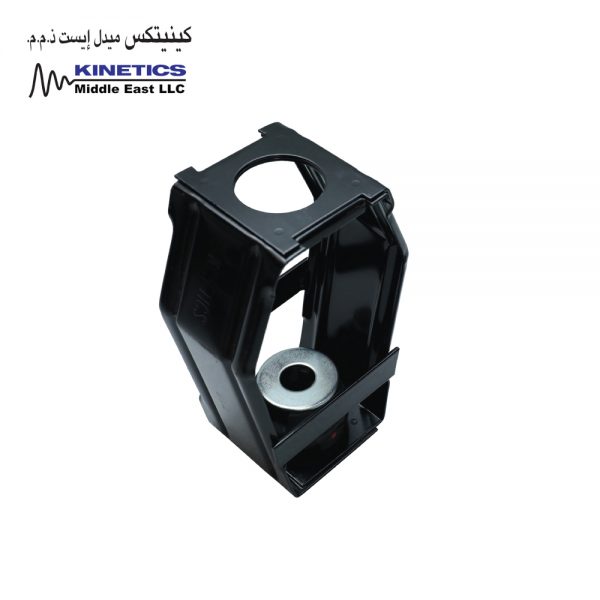

Kinetics RH Vibration Isolation Hangers use a colour-coded elastomer-in-shear insert with a load plate. This assembly sits inside a stamped or welded steel hanger bracket. Unlike compression-loaded rubber pads, the RH design loads the elastomer in shear. As a result, it increases allowable strain without accelerating deterioration.
The RH Neoprene Isolation Hanger suits HVAC, MEP, and building services applications where reliable vibration control must be achieved with a cost-conscious solution. Therefore, consultants and contractors often select RH hangers where first cost must be minimized while maintaining proper hanger-type isolation.
Neoprene Isolation for Suspended Systems

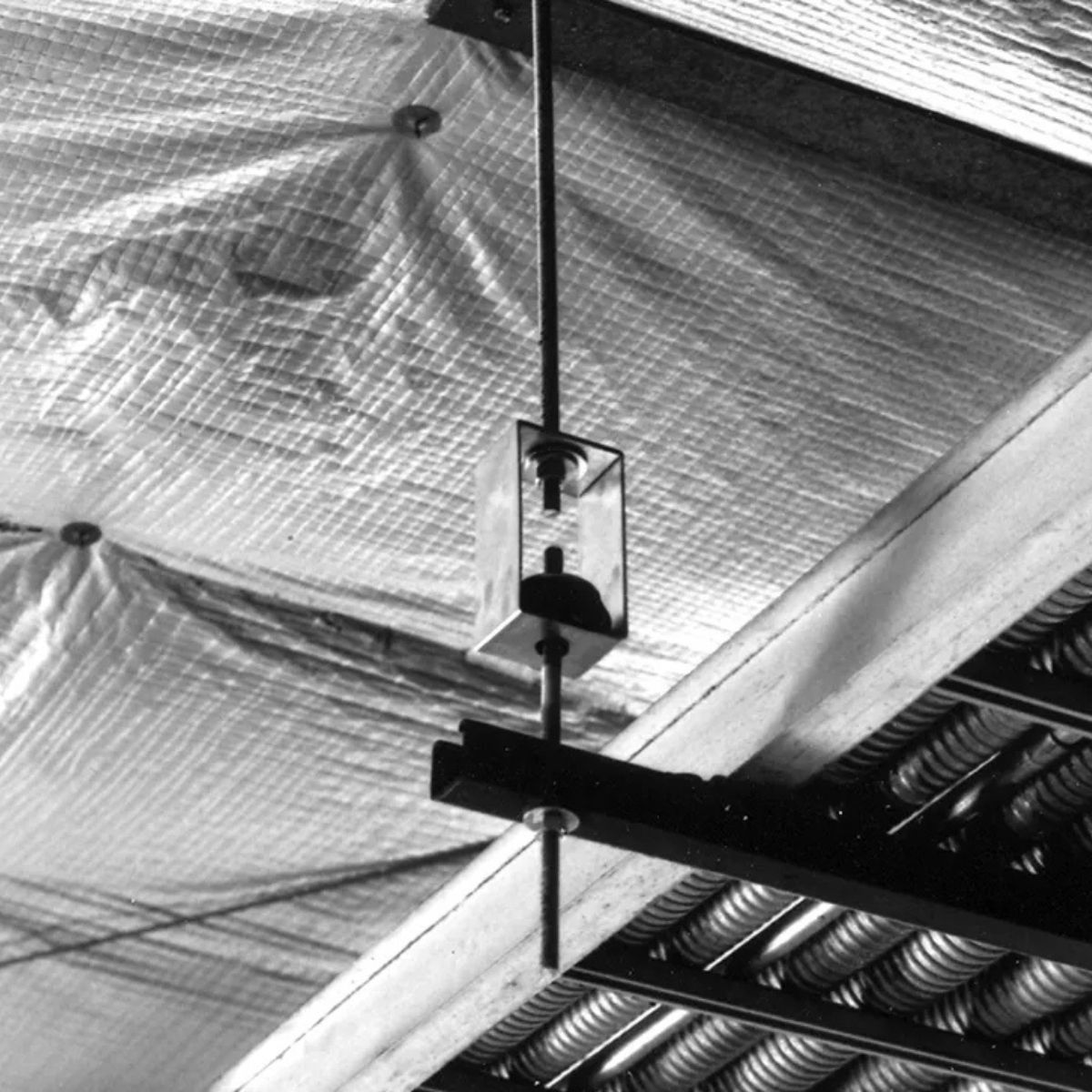

RH hangers are recommended for isolating vibration from suspended mechanical equipment, in-line fans, exhaust fans, ductwork, piping, and similar services. They work well where the project requires control of audible-frequency vibration rather than high-deflection spring isolation.
The elastomer insert is moulded from oil-resistant compounds and colour coded to indicate load capacity. In addition, Kinetics selects each isolation hanger for the specific application to meet the deflection requirements shown on the vibration isolation schedule or project documents.
Stable Hanger Bracket Design
Each RH hanger allows support rod misalignment through a 30° arc. This helps prevent metal-to-metal contact or other isolation short-circuiting during installation and operation.
The steel hanger bracket is designed to carry a 500% overload without failure. Consequently, RH hangers provide a practical and dependable solution for suspended HVAC and MEP systems in commercial buildings, hotels, hospitals, schools, residential towers, industrial facilities, and infrastructure projects.
Load Capacity and Static Deflection Range
RH Neoprene Isolation Hangers are available in deflections from 0.20 in. to 0.57 in. / 5 mm to 15 mm. They are also available in load capacities up to 2,000 lbs. / 907 kg.
The product specification applies to vibration isolators with maximum static deflection requirements under operating load conditions not exceeding 0.57 in. / 15 mm. This makes the RH range suitable for many standard suspended mechanical services where neoprene hanger isolation is appropriate.
Installation and Specification Support
Kinetics RH hangers are shipped fully assembled and ready for installation in threaded rod suspension systems. Accessories are also available to adapt the hanger for wire or strap suspension systems where required by site conditions.
RH Neoprene Isolation Hangers are referenced under Division 23 HVAC, Section 230548: Vibration Isolation, and classified as ASHRAE Type 3 isolators. RH submittal series include RH-75A/125A, RH-125B/450B, RH-550D, and RH-700C/2000C, with metric submittals also available. RHAA and RHAB submittal options are also available for related hanger configurations.
